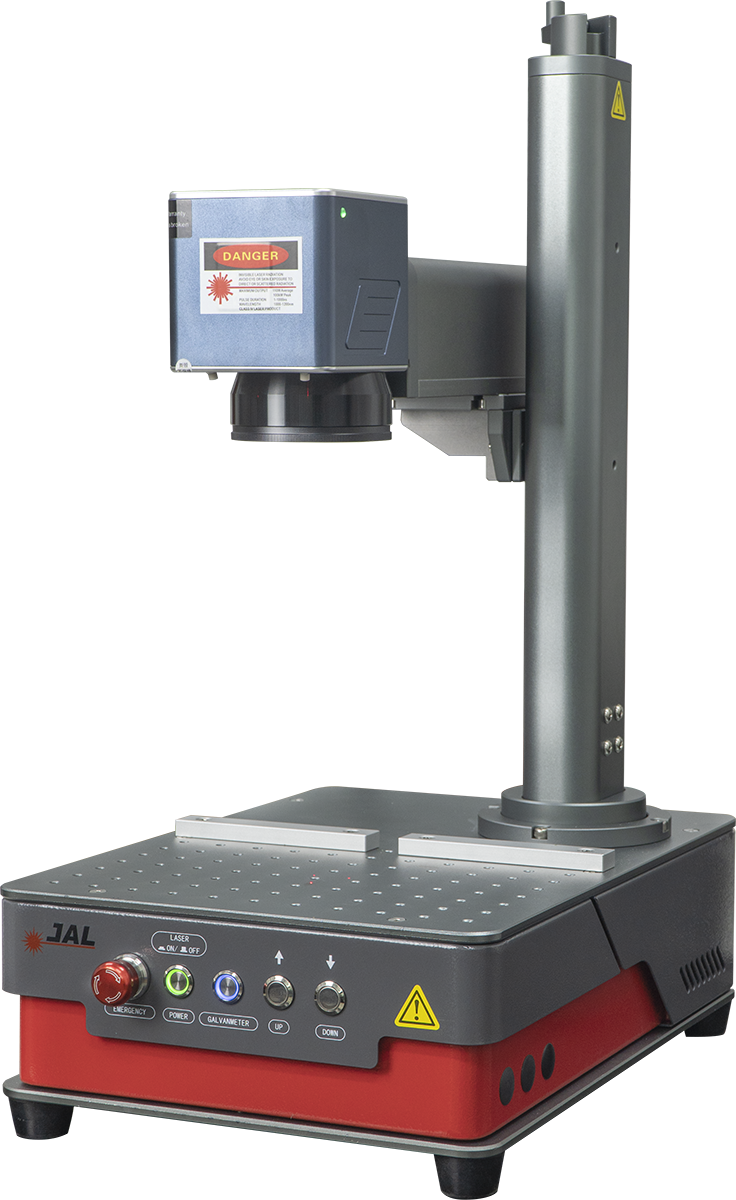

MINI 20

Laser Marking Series

Portable laser marking machine is a type of compact laser engraving system with MAX fiber laser source, which is easy to place and move. It adopts a unique integrated and fully built-in design, highly integrated optical, electronic and mechanical components, and a fully air-cooled design without external circulation cooling devices. The principle is to use a laser beam to make permanent marks on the surface of various materials. Portable laser engraving machine has the features of small size (air cooling without water cooling device), good laser beam quality (base mode), and maintenance-free.

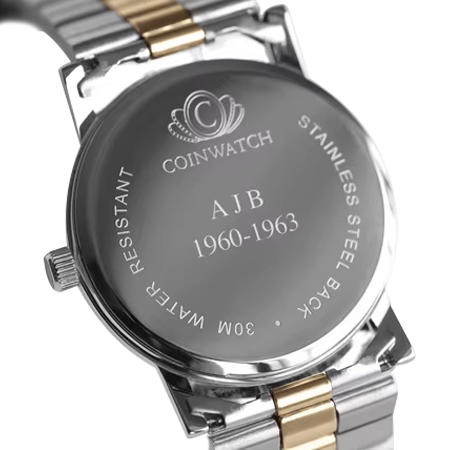

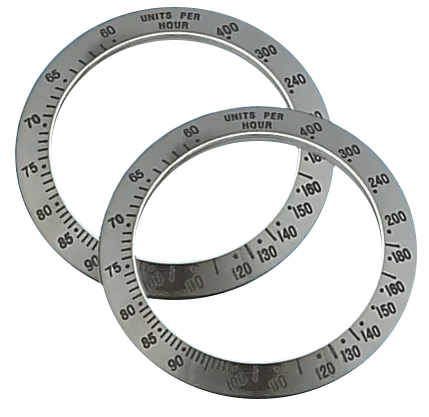

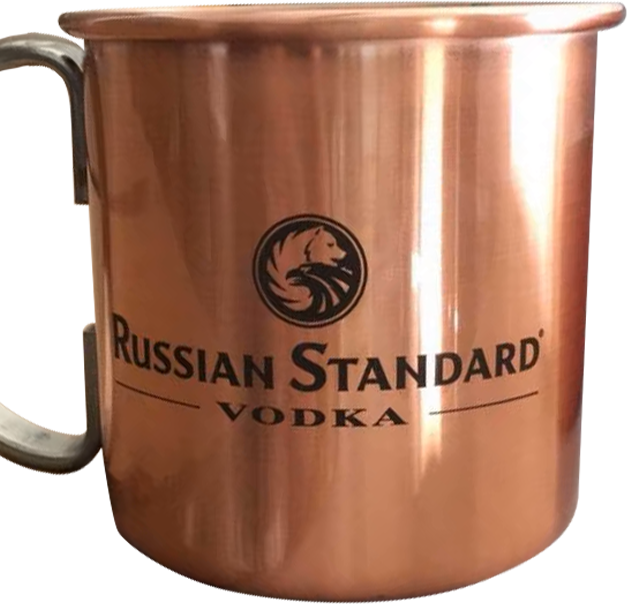

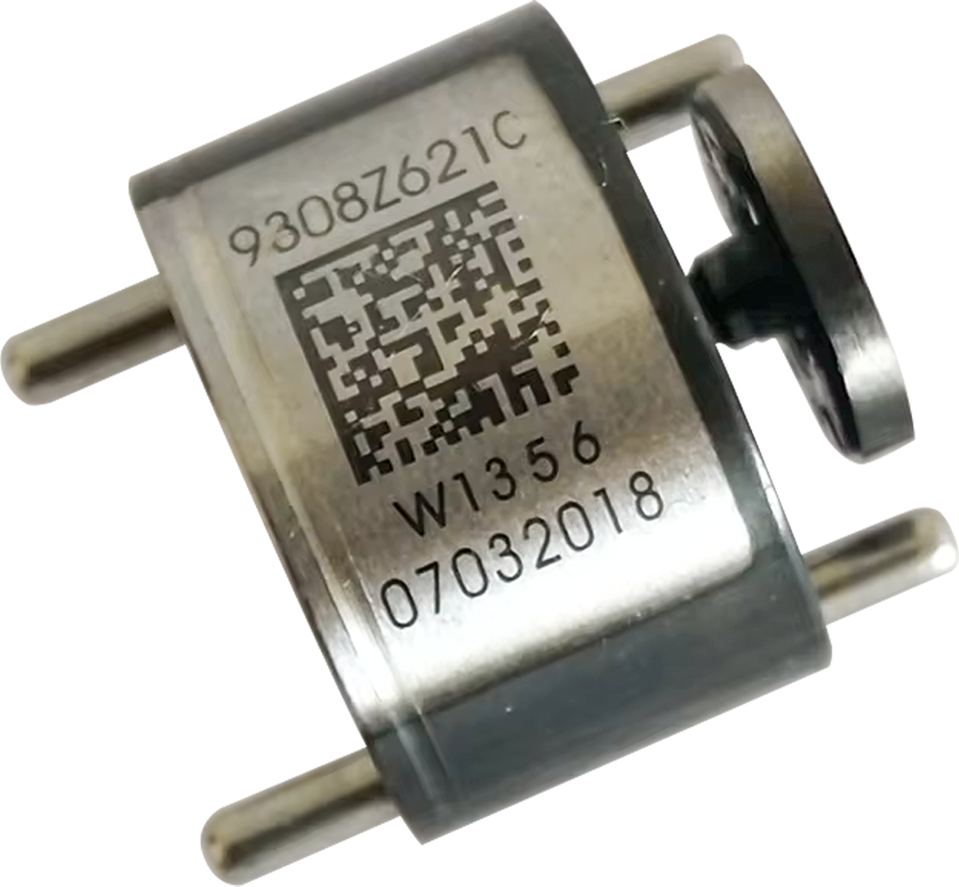

Samples

samples
samples
samples
samples
Lightbox Image

Product Spesification

Spesification Value
Laser Power 20W
Laser Source MAX
Scanner Head Cube 10 double red light
Up/Down Motor Rtelligent
Machine Power ≤700W
Marking Area 110x110mm
Repetition Accuracy ≤0.001mm
Line Width 0.05~0.1mm
Machine Dimension 300x430x642mm
Power Supply AC220V ± 10% 50Hz
Laser Wavelenght 1064nm
Cooling Method air cooling
Marking Accuracy ≤0.001mm
Marking Speed ≤10.000mm/s
Machine Weight 21.05Kgs ± 0.03Kgs
Laser Source up to 100.000 hours
